c0127




history and origins

Manufacturer / Brand Name
Edison

Country of Origin
USA

Factory Location
Unknown

Date of Manufacture
ca.1884

electrical attributes

Voltage
Unknown

Wattage / Candle Power
16cp

Amperage



physical attributes

Envelope
2.19" DIA.
Atmosphere
Vacuum


Finish / Color
Clear
Filament
Hairpin


Base
Edison; Medium (Short)


comments

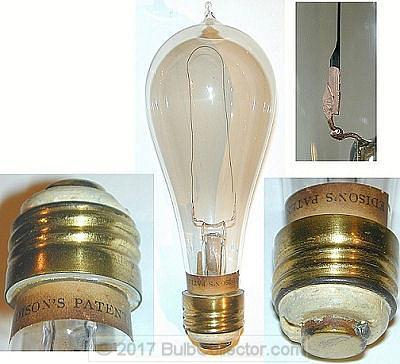

  Several features of this early Edison lamp help to precisely date it. Prior to 1884 all Edison lamp bases incorporated a strain relief ring above the threads. In 1884 this design was changed and the ring was omitted from the short threaded base. Another key identifier is the heavy use of copper that forms the joint or “clamp” between the lamp’s carbonized bamboo filament and the leading in wires that carry the current to the lamp. By 1887 the copper electroplating method of clamping was changed to a carbon paste joint. The “EDISON’S PATENT” (no dates) label also signifies that this is an early example of an Edison lamp.
