Author Topic: Found this old bulb........  (Read 12357 times)

Offline MikeB

  • New Member!
  • *
  • Posts: 2
Found this old bulb........
« on: May 11, 2004, 10:57:00 am »
In a dumpster by an old house next to mine. My house was built in the 1860S with no electricity and the house next door is a little older than mine. I have some nice pics of it but can't figure out how to post. I'll e-mail them to Tim and see if he can post them for me.

Offline Tim

  • Administrator
  • Hero Member
  • *****
  • Posts: 831
    • http://www.bulbcollector.com
Found this old bulb........
« Reply #1 on: May 11, 2004, 12:13:00 pm »

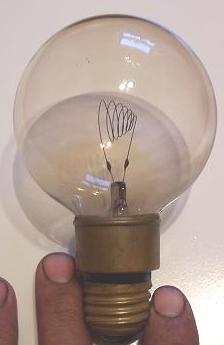

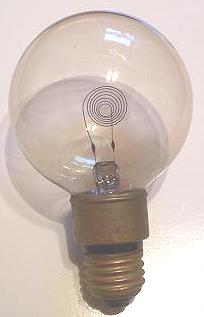

Pictures posted on behalf of MikeB:





------------------
Tim
Kilokat's Antique Light Bulb Site
Mountain Dew Collectibles, Volume I

Offline Chris W. Millinship

  • Hero Member
  • ****
  • Posts: 384
Found this old bulb........
« Reply #2 on: May 11, 2004, 02:53:00 pm »
Welcome

That is a heat-lamp bulb probably dating to around the 1920s-30s or so. Thick carbon filament of 250 - 300 watts at 120 volts, it puts out a lot of heat that would have been used in a handheld fixture with a reflector for medicinal purposes - relieving muscle pain, etc. A concept that is still in use today, and by much the same means too.

The cone shaped spiral filament is known as the "stereopticon" shape, and helps concentrate the filament in to a small area. These lamps are very bright as well as giving out a lot of heat and as such were also used for projection in "magic lanterns" and possibly cinema projectors too. The stereopticon filament makes for a solid, bright light source when aligned properly, that could be focussed rather precisely making it ideal for projection. In the days before coiled tungsten filaments they were essentially all there was, asides from arc lamps.

They are often found with standard 4 or 5 loop filaments intended for medicinal uses only, the Stereopticon filament shape is a bit less common but still not that rare. I have also seen blue-glass and red-glass versions, presumably with standard filaments, which are likely to be more medicinal than decorative. For when the warmth is required but the bright glare would be undesirable, the dark glass would block out a lot of the light but not the heat. Those are quite rare and hard to find, so worth a fair amount ($40-ish?). The clear ones are worth less - unfortunately lamps like this are not hugely valuable, fetching maybe $10-15 or so, at least the last time I looked.




------------------
Visit the Bulb Museum!
e-mail: curator(at)bulbmuseum(dot)net.

Offline MikeB

  • New Member!
  • *
  • Posts: 2
Found this old bulb........
« Reply #3 on: May 14, 2004, 02:28:00 am »
quote:
Originally posted by Chris Millinship:
Welcome

That is a heat-lamp bulb probably dating to around the 1920s-30s or so. Thick carbon filament of 250 - 300 watts at 120 volts, it puts out a lot of heat that would have been used in a handheld fixture with a reflector for medicinal purposes - relieving muscle pain, etc. A concept that is still in use today, and by much the same means too.

The cone shaped spiral filament is known as the "stereopticon" shape, and helps concentrate the filament in to a small area. These lamps are very bright as well as giving out a lot of heat and as such were also used for projection in "magic lanterns" and possibly cinema projectors too. The stereopticon filament makes for a solid, bright light source when aligned properly, that could be focussed rather precisely making it ideal for projection. In the days before coiled tungsten filaments they were essentially all there was, asides from arc lamps.

They are often found with standard 4 or 5 loop filaments intended for medicinal uses only, the Stereopticon filament shape is a bit less common but still not that rare. I have also seen blue-glass and red-glass versions, presumably with standard filaments, which are likely to be more medicinal than decorative. For when the warmth is required but the bright glare would be undesirable, the dark glass would block out a lot of the light but not the heat. Those are quite rare and hard to find, so worth a fair amount ($40-ish?). The clear ones are worth less - unfortunately lamps like this are not hugely valuable, fetching maybe $10-15 or so, at least the last time I looked.






Thanks for posting those for me Tim and for the info. Thank you Chris also fo the info. I was not much interested in the value as the age and use' but its kind of nice to know. Thanks again.......mikeB
